T – 3-way T Intersection for creating crisp, continuous lines and a polished architectural appearance
All intersections are manufactured in a controlled factory environment to the highest quality standards.

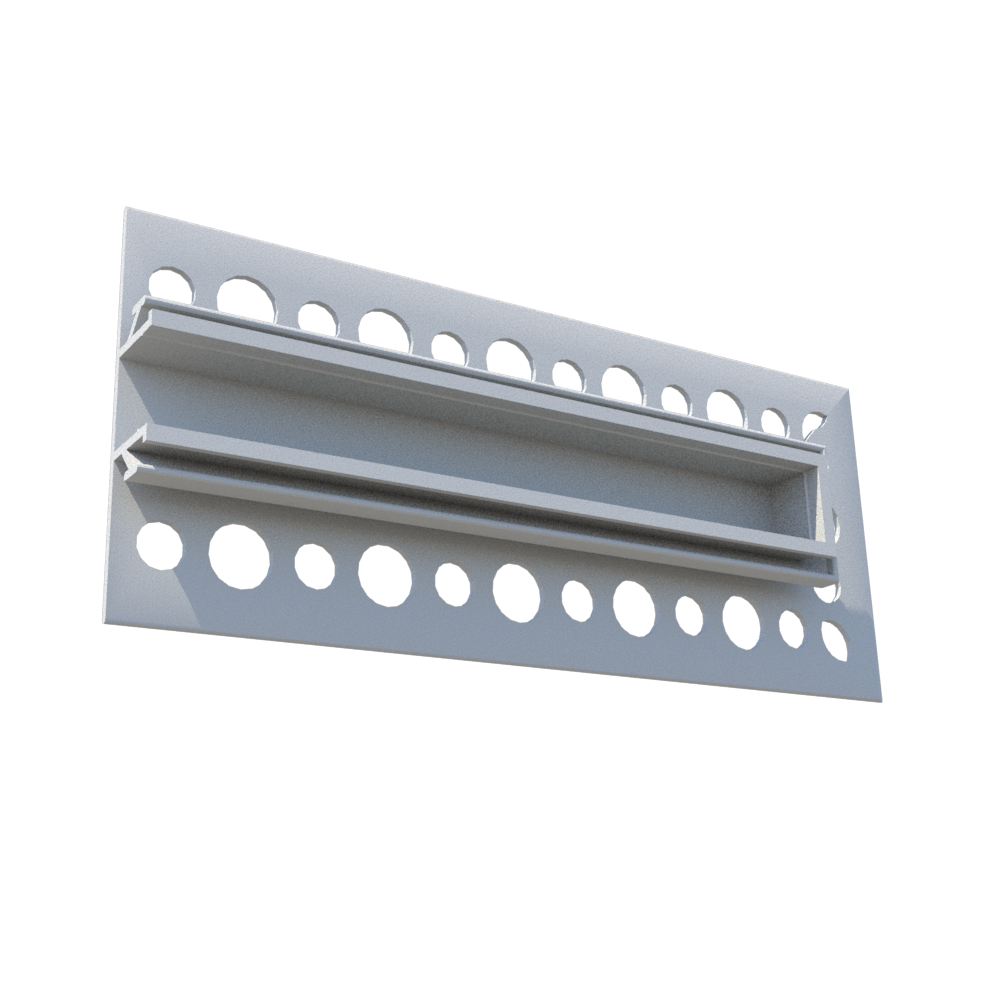

EC – END CLOSURE intersection neatly caps/encloses the exposed end of a reveal channel, creating a polished appearance while maintaining consistent reveal dimensions. Designed for easy installation and a professional finish.
All ClarkDietrich vinyl intersections are manufactured in a controlled factory environment to the highest quality standards. Miter cuts are made with precision to ensure proper fit at all connections. Hot-melt glue and foil-backed tape are used to create a strong bond for all components. The quality of ClarkDietrich's fabricated channel reveal intersections cannot be duplicated on a job site.
It is recommended that additional 10ft. channel reveal material is ordered along with all intersections to ensure seamless connections. Caulk all intersections, butt joints, ends and corners at time of installation.
All factory fabricated intersections are made-to-order. Please contact us at 1-800-648-4695 for specific lead-times and capabilities on any special intersections.
Code Approvals & Performance Standards
- ASTM C840 Standard Specification for Application and Finishing of Gypsum Board
- ASTM C1047 Standard Specification for Accessories for Gypsum Wallboard and Gypsum Veneer Base
- ASTM D1784 Standard Classification System and Basis for Specification for Rigid Poly(Vinyl Chloride) (PVC) Compounds and Chlorinated Poly(Vinyl Chloride) (CPVC) Compounds
- ASTM D3678 Standard Specification for Rigid Poly(Vinyl Chloride) (PVC) Interior - Profile Extrusions
- ASTM D4216 Standard Specification for Rigid Poly(Vinyl Chloride) (PVC) and Related PVC and Chlorinated Poly(Vinyl Chloride) (CPVC) Building Products Compounds
- SDS Vinyl Corp PVC Compounds
Storage:
All stored materials shall be kept dry. Materials shall be stacked off the ground, supported on a level platform, and protected from the weather.
PRoduct submittal SHeets
Click the below Product Code to view Submittal/Tech Datasheet.
| Product Code | Description |
|---|---|
| XXXXXXXXXX | Factory Fabricated End Closure |
ClarkDietrich SubmittalPro®
Submittal sheets for the exact product you're looking for can be created by using ClarkDietrich's SubmittalPro® Product Submittal System.
- Contact ClarkDietrich Technical Services at 888-437-3244 for any questions about creating product submittals or using SubmittalPro.
